Rapid LED Violit UVA Supplement Booster Board
Rapid LED Violit UVA Supplement Booster Board
Rapid LED Violit UVA Supplement Booster Board
The Rapid LED Violit UVA Supplement Booster Board is a simple to use, plug and play two-channel UVA (365-370nm and 390-400nm) board designed to target the UVA range which white LEDs generally do not include for maximum trichome production. Dimming of two separate channels requires a controller, while running without a controller will simply turn on all the lights at 100% intensity

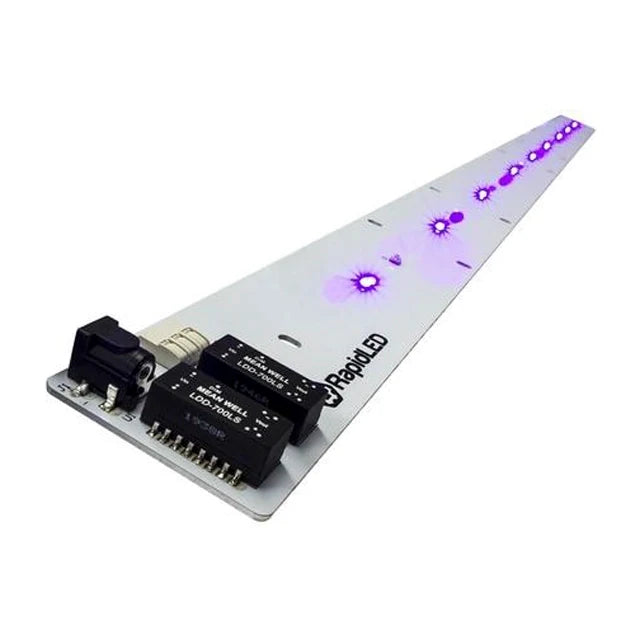

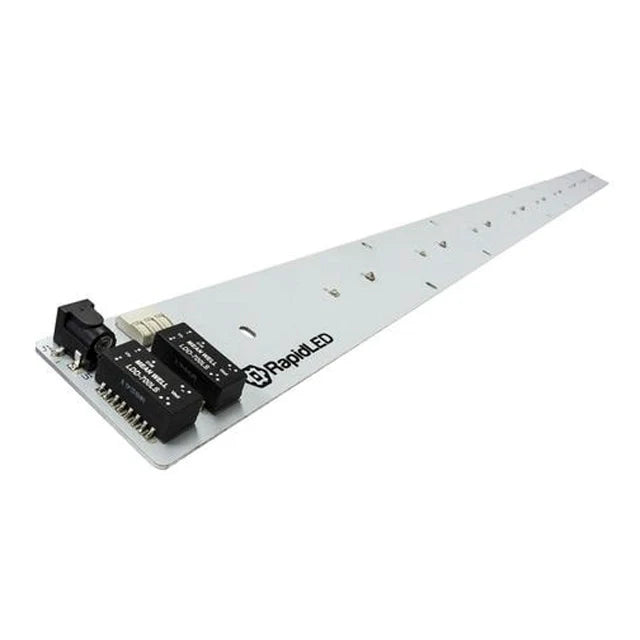

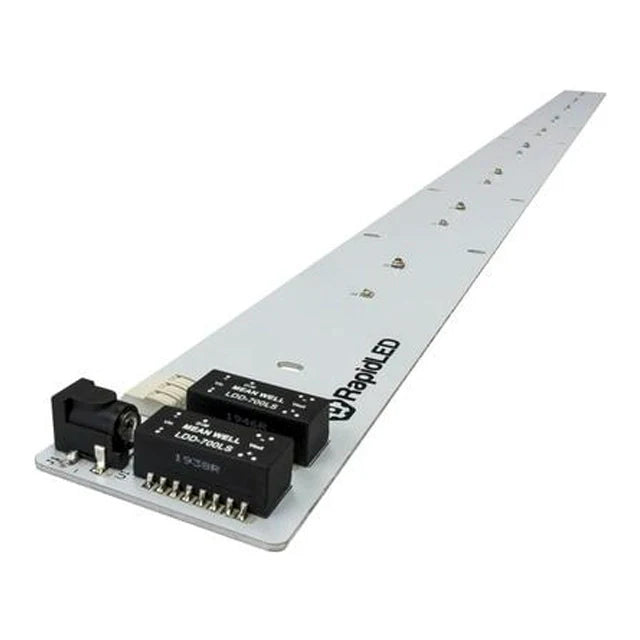

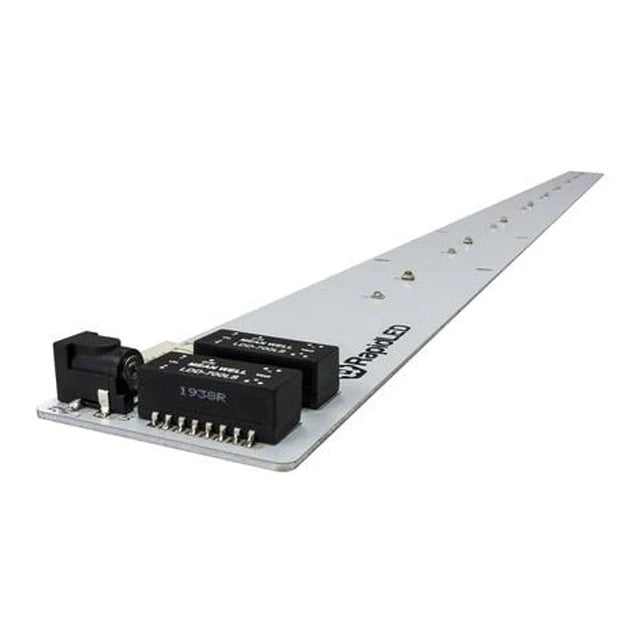

The board comes with 18 total LEDs (9x 365nm and 9x 390-400nm), 2x Mean Well LDD-700LS drivers, a WAGO connector for dimming and a DC barrel connector for easy solderless power

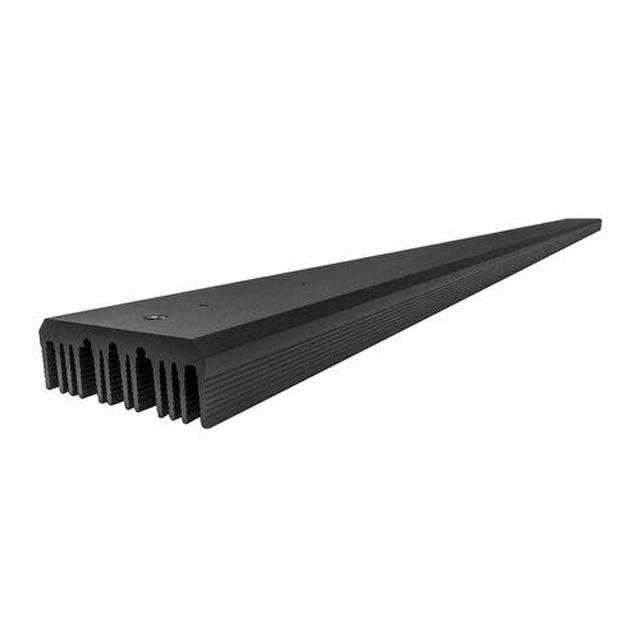

Doesn't require a separate heatsink though we recommend using one to provide support/rigidity to the strip. The Supplemental Canopy Heatsink was designed to fit this strip and will slide into the 4' x 4' Canopy Substrate. Please select the option with Canopy Brackets if using within a Canopy Substrate.
Instructions
- Use the last 2-3 weeks of flower for maximum trichome production
Product Details
- LED Wattage : ~45W
- Coverage Area : 2' x 4'
- LEDs : SemiLEDs 365nm and 390nm
- Drivers : Mean Well LDD-700LS
- Compatible Lens : None, don't use lenses with UVA LEDs
- DC Power Connector : 5.5mm OD/2.5mm ID
- Dimming Signal : Optional 2.5-6V PWM
- Dimensions : ~38.5" X 1.9"
